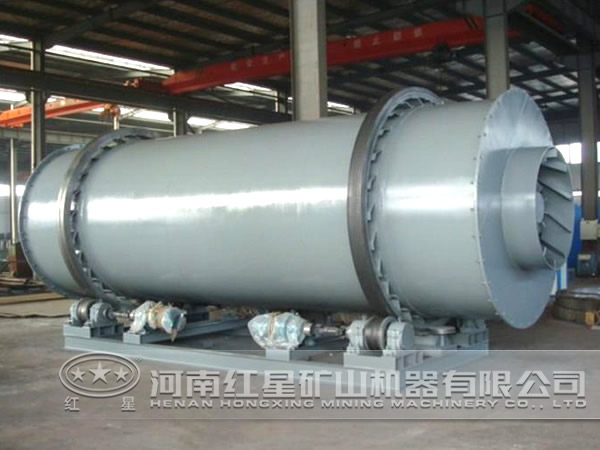

套筒烘干機也叫做節能套筒烘干機，與其他烘干機相比更具有一定的優勢，具體是在原有高濕物料干燥機的基礎上進行改進的一種節能高效干燥設備。經過用戶的使用和科研人員的研制，目前已經達到國際先進水平，不僅能處理粘性較低的高水份物料，還能處理粘性粘性較大的高水分物料， 了一機多用的原則。
該套筒烘干機適用于含水小于85%的各類糟渣物料的干燥，如啤酒糟、酒精糟、果渣、藥渣、醬糟、糖渣、淀粉渣、禽畜糞便、屠宰下腳料等，對于開辟飼料資源，降低飼養成本，減少環境污染具有良好 。
It is improved on the basis of the traditional high humidity material drying machine to be an energy-saving dryer with high efficiency. Now it has reached the advanced international level after continuous improvement which can not only process the high humidity materials with both weak and strong stickiness.
It is used to dry all kinds of slag materials with humidity less than 85% like brewer’s grain, alcohol grain, fruit grain, medicine slag, sauce grain, sugar grain, starch slag, animal faeces and butcher leftovers.
1、無漏風現象， 了密封難點，2小時內就可安裝完畢。
2、可根據用戶要求輕松調控所要的終水分指標。
3、出料溫度<50度，可直接進料庫，無需進冷卻棚冷卻。
4、外筒體溫度60度，廢氣溫度<100度，除塵設備布袋適用時間長2倍以上，出來都是水蒸氣。
5、煤耗是單筒烘干機的1/3，節電40%。噸標煤耗<9公斤，小型號烘干機年節煤為50-100 ，大型號烘干機年節煤100-200 。
6、設備投資是國外進口產品的1/6，采用合金鋼板制造，比普通鋼板耐磨3-4倍。
物料由供料裝置進入節能套筒烘干機回轉滾筒的內層, 順流烘干,物料在內層的抄板下不斷抄起、散落呈螺旋行進式 熱交換，物料移動至內層的另一端進入中層，進行逆流烘干，物料在中層不斷地被反復揚進，呈進兩步退一步的行進方式，物料在中層既充分吸收內層滾筒散發的熱量，又吸收中層滾筒的熱量，同時又延長了干燥時間，物料在此達到 干燥狀態。物料行至中層另一端而落入外層，物料在外層滾筒內呈矩形多回路方式行進，達到干燥 的物料在熱風作用下快速行進排出滾筒，沒有達到干燥 的濕物料因自重而不能快速行進，物料在此矩形抄板內進行充分干燥，節能套筒烘干機由此完成干燥目的。
Materials enter the inner side of the drum through the feeding device to realize current flow drying process. They get raised and scattered under the shoveling plate in a spiral advancing way to exchange heat. Then the materials enter the middle layer of the inner wall through the other end to realize counter current drying process. They are lifted in over and over in the middle layer which advance in two-steps forward and one-step back way. They absorb heat from both inner drum and middle drum, which extend the drying time and realize the best drying condition. Finally, materials fall into the external layer of the drum from the other end of the middle layer, processing in a rectangle multi-loop way. The dried materials move quickly out of the drum under the hot air, while the wet ones remain because of their own weight. Materials are dried completely inside the rectangle shoveling plate and then cooled by the single drum cooler, thus finishing the whole drying process.
河南紅星礦山機器有限公司位于河南省鄭州市。是一家大型套筒烘干機廠家，生產的套筒烘干機具有布局合理、安裝方便等優點。套筒烘干機價格合理，歡迎新老客戶來廠參觀選購。
套筒烘干機廠家地址：中國-河南-鄭州-高新 產業開發區-檀香路-8號。
