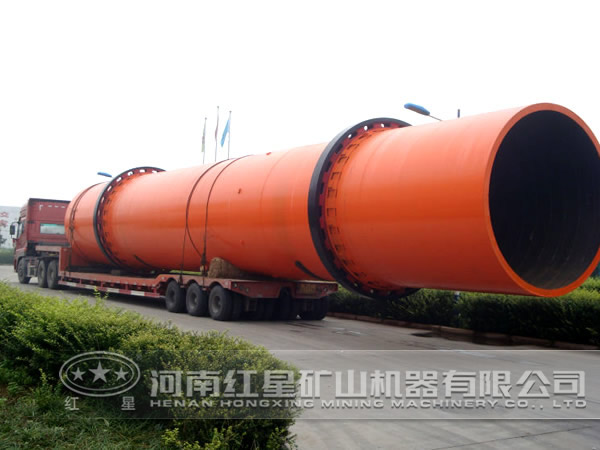

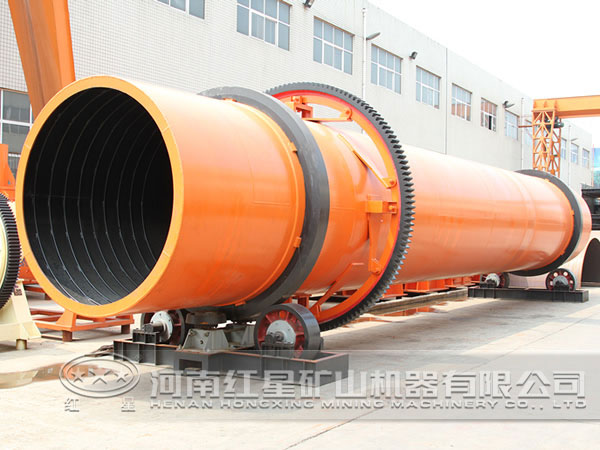

復合肥烘干機也稱轉筒干燥機，烘干一定濕度和粒度肥料，同時也可用于其他物料烘干，該機揚料板分布及角度設計合理，性能可靠，因而熱能利用率高，干燥均勻，清理物料次數少，適用維修方便等特點。復合肥烘干機可作為有機復合肥生產線配套設備，成品顆粒細，既可作為培養基， 食用菌雙孢菇，也可作為養殖龜、魚、蝸牛、雞、鴨等的飼料出售。
Compound fertilizer dryer is also known as drum dryer, used for drying climate and granular fertilizers, while can also be used for drying other materials. The distribution and angle of the lifting plate is reasonably designed, with reliable performance, thus compound fertilizer drying machine has advantages of high thermal energy utilization, uniform drying, less number of times to clean material, convenient maintenance and so on.Compound fertilizer dryer is mainly used in the production of organic compound and compound fertilizer.
1.復合肥烘干機機械化程度高，生產能力較大，可連續運轉。
2. 結構優良﹑簡單﹑物料通過筒體阻力運行平穩﹑操作方便。
3. 故障少﹑維護費用低﹑功耗低。
4. 復合肥烘干機適用范圍廣﹑產品干燥的均勻性好。
5. 干燥的同時還可達到殺菌和除臭的目的。
復合肥由給料機經溜槽進入烘干機內導料板上，跟著筒體的滾動，復合肥被導至傾斜揚料板上即被晉升到筒體的 位置，逐漸灑落形成料幕，高溫氣流從中穿過，使其預熱并蒸發部分水分。當復合肥灑落、移動到流動的篦條式翼板上時，物料又與預熱過的篦條式翼板夾雜在一起，將熱量傳給物料，使部分水分蒸發。同時，翼板夾帶物料提起、灑落，重復多次，物料與熱氣流進行對流和接觸熱交換。同時埋在物料中的清掃裝置，也沿圓弧形揚料板的里側下滑，把揚料板內壁粘附的物料清掃下來。當清掃裝置隨筒體轉過垂直線以后，又在圓弧揚料板背面拖動，將其粘附在揚料板外壁的物料清掃下來。跟著筒體的不斷滾動，使部分水分蒸發，復合肥得到進一步干燥。同時，清掃裝置對團球也起到了打碎作用，提高了干燥速度， 復合肥干燥后變成低水分的疏松物料，由出料口排出。
Compound fertilizer is fed on the stock guide of compound fertilizer dryer via chute, along with the rotating of barrel, compound fertilizer will be led to inclined lifting plate lifted up to central location of dryer tube, and then gradually fell down like a curtain, so the high temperature air flowing through it can preheat and evaporate moisture in materials. When the compound fertilizer fell down and spilled on grate-wing, the material will be mixed together with preheated grate plate wing, so that part of water in material can be evaporated. At the same time, wings entrained materials lift and fall many times, for materials fully contact with hot air convection and heat exchange. Cleaning device buried in the material simultaneously sides down along lifting plate with arc shape, to clean material glued on lifting plate wall. Along with the rotating of cylinder, part water in material can be evaporated, and compound fertilizer can be further dried. Meanwhile, cleaning device also plays a role in breaking massed ball to improve drying speed. Finally, the dried compound fertilizer with low moisture content is loose material and be discharged through discharge port.
河南紅星礦山機器有限公司位于河南省鄭州市。是一家大型復合肥烘干機廠家，生產的復合肥烘干機具有布局合理、安裝方便等優點。復合肥烘干機價格合理，歡迎新老客戶來廠參觀選購。
復合肥烘干機廠家地址：中國-河南-鄭州-高新 產業開發區-檀香路-8號。
